Advanced multi-RF systems designed for high precision, reliability, and comprehensive data

ADS-B, FLARM, UAT

Our TT-S2 family of products, including the TT-SG2, TT-SU2n, TT-SU2, TT-SF2n, and TT-SF2 models, offers advanced multi-RF systems designed for high precision, reliability, and comprehensive data handling in modern aviation and unmanned systems applications. These systems are built to meet the demanding needs of modern applications, providing cutting-edge solutions for aviation, unmanned systems, and high-density traffic surveillance.

AEROBITS’ TT-S2 family products are designed to meet the highest standards of precision, reliability, and versatility. With advanced features and robust performance, these products are the ideal choice for enhancing safety and efficiency in both aviation and unmanned systems. Explore the possibilities with the TT-S2 family and take your operations to new heights.

Notice: in case TT-SF2 and TT-SF2n price includes a life-long FLARM license.

Product status:

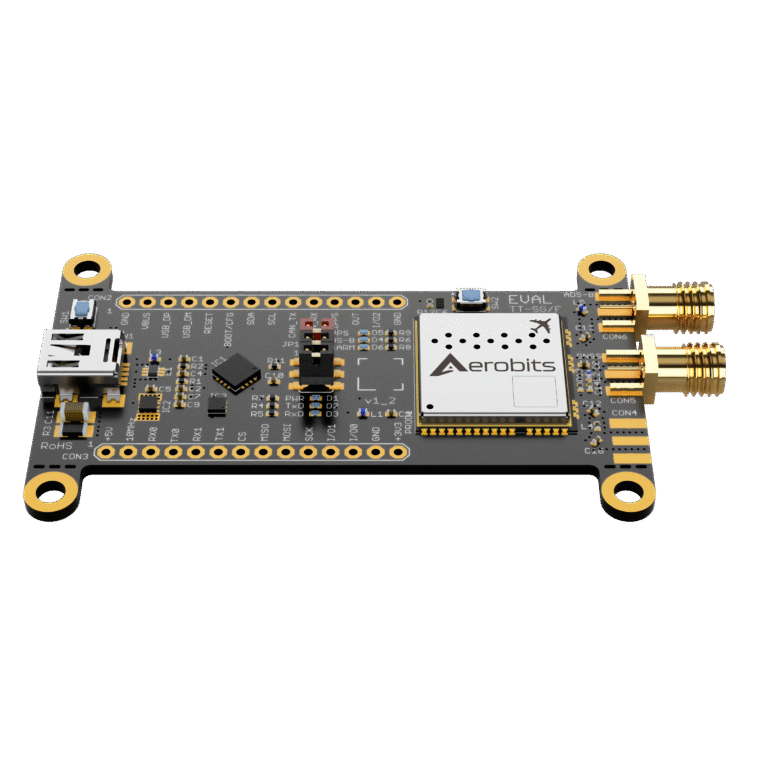

Want to evaluate TT-S2 family module?

The evaluation kit provides a quick introduction to any from TT­-S2 family module.

See beyond

Features:

Application:

Basic Electrical specification:

OEM category Product name TT-SG2 TT-SU2n TT-SU2 TT-SF2n TT-SF2
RF Systems ADS-B (IN)
MODE A/C/S (IN)  ✔  ✔
Precise MODE A/C/S Timestamp
FLARM (IN/OUT)
UAT (IN)
Built-in GNSS **   Needs external GNSS source for FLARM subsystem
RX sensitivity [dBm] -85 (ADS-B)
-167 (GNSS)
-85 (ADS-B)
-95 (UAT)
-85 (ADS-B)
-95 (UAT)
-167 (GNSS)

-85 (ADS-B)
-103 (FLARM)

-85 (ADS-B)
-103 (FLARM)
-167 (GNSS)

Communication Interfaces Transmitter power [dBm]       +14 (FLARM) +14 (FLARM)
UART interface [baud] ✔ (115k / 921k / 3M) ✔ (115k / 921k / 3M) ✔ (115k / 921k / 3M) ✔ (115k / 921k / 3M) ✔ (115k / 921k / 3M)
USB interface ✔ (2.0) ✔ (2.0) ✔ (2.0) ✔ (2.0) ✔ (2.0)
Supported protocols set Extended* Extended* Extended* Extended* Extended*
Other Power supply [V] 3.3 3.3 3.3 3.3 3.3
Current consumption [mA] 100 115 130 115 130
Weight [g] 1.6 1.7 1.8 1.7 1.7
Dimensions [mm] 19 x 18.5 19 x 18.5 19 x 18.5 19 x 18.5 19 x 18.5
Legend
* Extended set (Some RF reception systems do not support certain protocols)CSV / MAVLINK / RAW / JSON / ASTERIX / GDL90 / BEAST
** BUILD-IN GNSS spec.4 Concurrent constellations; 72-channel engine; GPS/QZSS L1 C/A; GLONASS L10F; BeiDou B1I; Galileo E1B/C1SBAS L1 C/A; WAAS; EGNOS; MSAS; GAGAN

Downloads:

TT-SF2

1
NameSize
OEM_SF2_Datasheet_32o-v1_1_57.pdf OEM_SF2_Datasheet_32o-v1.1.57.pdf

Open Download Copy Link 3.15 MB 2024-08-07 7 August 2024 2024-08-07 7 August 2024
3.15 MB
OEM_SF2_Datasheet_32o-v1_1_56.pdf OEM_SF2_Datasheet_32o-v1.1.56.pdf

Open Download Copy Link 3.15 MB 2024-07-31 31 July 2024 2024-07-31 31 July 2024
3.15 MB
OEM_SF2_Datasheet_32o-v1_1_50.pdf OEM_SF2_Datasheet_32o-v1.1.50.pdf

Open Download Copy Link 3.13 MB 2024-04-23 23 April 2024 2024-04-23 23 April 2024
3.13 MB

3

af33ec34c8

TT-SU2

1
NameSize
OEM_SU_Datasheet_33o-v1_1_57.pdf OEM_SU_Datasheet_33o-v1.1.57.pdf

Open Download Copy Link 1.16 MB 2024-08-07 7 August 2024 2024-08-07 7 August 2024
1.16 MB
OEM_SU_Datasheet_33o-v1_1_41.pdf OEM_SU_Datasheet_33o-v1.1.41.pdf

Open Download Copy Link 1.26 MB 2024-03-18 18 March 2024 2024-03-18 18 March 2024
1.26 MB
OEM_SU_Datasheet_33o-v1_1_37.pdf OEM_SU_Datasheet_33o-v1.1.37.pdf

Open Download Copy Link 1.25 MB 2024-02-01 1 February 2024 2024-02-01 1 February 2024
1.25 MB
OEM_SU_Datasheet_33o-v1_1_16.pdf OEM_SU_Datasheet_33o-v1.1.16.pdf

Open Download Copy Link 1.3 MB 2023-08-23 23 August 2023 2023-08-07 7 August 2023
1.3 MB
OEM_SU_Datasheet_33o-v1_1_8.pdf OEM_SU_Datasheet_33o-v1.1.8.pdf

Open Download Copy Link 1.3 MB 2023-08-23 23 August 2023 2023-06-21 21 June 2023
1.3 MB
OEM_SU_Datasheet_33o-v1_1_1.pdf OEM_SU_Datasheet_33o-v1.1.1.pdf

Open Download Copy Link 1.3 MB 2023-08-23 23 August 2023 2023-05-17 17 May 2023
1.3 MB

9

af33ec34c8

TT-SF2

1
NameSize
FW_TTSF2_2_73_4_0D.aff

Download Copy Link 392.47 KB 2024-08-05 5 August 2024 2024-08-05 5 August 2024
392.47 KB
FW_TTSF2_2_73_1_0D.aff

Download Copy Link 392.47 KB 2024-06-27 27 June 2024 2024-07-18 18 July 2024
392.47 KB
FW_TTSF2_2_48_3_0D.aff

Download Copy Link 396.48 KB 2023-07-28 28 July 2023 2024-06-20 20 June 2024
396.48 KB
FW_TTSF2_2_44_0_0D.aff

Download Copy Link 405.52 KB 2023-05-12 12 May 2023 2023-07-28 28 July 2023
405.52 KB
FW_TTSF2_2_43_0_0D.aff

Download Copy Link 406.52 KB 2023-05-12 12 May 2023 2023-05-12 12 May 2023
406.52 KB
FW_TTSF2_2_40_0_0D.aff

Download Copy Link 405.52 KB 2023-05-10 10 May 2023 2023-05-12 12 May 2023
405.52 KB

15

af33ec34c8

TT-SF2 UAT

1
NameSize
FW_TTSF2_UAT_2_65_0_1D.aff

Download Copy Link 350.3 KB 2024-07-03 3 July 2024 2024-06-28 28 June 2024
350.3 KB

16

af33ec34c8

TT-SU2

1
NameSize
FW_TTSU2_2_73_4_0D.aff

Download Copy Link 353.31 KB 2024-08-02 2 August 2024 2024-08-05 5 August 2024
353.31 KB
FW_TTSU2_2_48_3_0D.aff

Download Copy Link 334.24 KB 2023-07-28 28 July 2023 2024-07-18 18 July 2024
334.24 KB
FW_TTSU2_2_44_0_0D.aff

Download Copy Link 342.27 KB 2023-05-12 12 May 2023 2023-07-28 28 July 2023
342.27 KB
FW_TTSU2_2_25_0_0D.aff

Download Copy Link 322.19 KB 2023-05-10 10 May 2023 2023-05-12 12 May 2023
322.19 KB

20

af33ec34c8

TT-SG1

1
NameSize
FW_TTSG1_2_48_3_0D.aff

Download Copy Link 188.12 KB 2023-07-28 28 July 2023 2024-07-18 18 July 2024
188.12 KB
FW_TTSG1_2_9_3_194D.aff

Download Copy Link 177.28 KB 2023-02-28 28 February 2023 2023-07-28 28 July 2023
177.28 KB

22

af33ec34c8



TT-SF2

1
NameSize
TT-SF2.step

Download Copy Link 2.04 MB 2024-04-25 25 April 2024 2024-04-23 23 April 2024
2.04 MB

23

af33ec34c8

TT-SU2

1
NameSize
TT-SU2a.step

Download Copy Link 2.01 MB 2023-05-17 17 May 2023 2023-05-17 17 May 2023
2.01 MB

24

af33ec34c8

Windows software

1
NameSize
Micro_ADSB_App-v1_24_1_win_setup.zip Micro_ADSB_App-v1.24.1_win_setup.zip

Download Copy Link 11.05 MB 2024-06-14 14 June 2024 2024-06-14 14 June 2024
11.05 MB
Micro_ADSB_App-v1_24_0_win_setup.zip Micro_ADSB_App-v1.24.0_win_setup.zip

Download Copy Link 11.05 MB 2023-08-29 29 August 2023 2023-08-29 29 August 2023
11.05 MB
Micro_ADSB_App-v1_23_3_win_setup.zip Micro_ADSB_App-v1.23.3_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-08-04 4 August 2023
11.05 MB
Micro_ADSB_App-v1_23_1_win_setup.zip Micro_ADSB_App-v1.23.1_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-04-25 25 April 2023
11.05 MB

28

af33ec34c8

User guide

1
NameSize
SOFT_MicroADSB_Datasheet_01m-v1_1_0.pdf SOFT_MicroADSB_Datasheet_01m-v1.1.0.pdf

Open Download Copy Link 648.59 KB 2023-08-23 23 August 2023 2023-05-15 15 May 2023
648.59 KB

29

af33ec34c8



Windows

1
NameSize
UpdaterApp_v1_7_0_win.zip UpdaterApp_v1.7.0_win.zip

Download Copy Link 558.82 KB 2024-08-09 9 August 2024 2024-08-09 9 August 2024
558.82 KB
UpdaterApp_v1_6_6_win.zip UpdaterApp_v1.6.6_win.zip

Download Copy Link 558.49 KB 2023-08-23 23 August 2023 2023-08-01 1 August 2023
558.49 KB
UpdaterApp_v1_6_4_win.zip UpdaterApp_v1.6.4_win.zip

Download Copy Link 558.49 KB 2023-08-23 23 August 2023 2023-07-26 26 July 2023
558.49 KB
UpdaterApp_v1_6_3_win.zip UpdaterApp_v1.6.3_win.zip

Download Copy Link 558.5 KB 2023-08-23 23 August 2023 2023-07-25 25 July 2023
558.5 KB

33

af33ec34c8

Linux x86

1
NameSize
UpdaterApp_v1_7_0_lin_x86.zip UpdaterApp_v1.7.0_lin_x86.zip

Download Copy Link 1.02 MB 2024-08-09 9 August 2024 2024-08-09 9 August 2024
1.02 MB
UpdaterApp_v1_6_6_lin_x86.zip UpdaterApp_v1.6.6_lin_x86.zip

Download Copy Link 1.02 MB 2023-08-23 23 August 2023 2023-08-01 1 August 2023
1.02 MB
UpdaterApp_v1_6_4_lin_x86.zip UpdaterApp_v1.6.4_lin_x86.zip

Download Copy Link 1.02 MB 2023-08-23 23 August 2023 2023-07-26 26 July 2023
1.02 MB
UpdaterApp_v1_6_3_lin_x86.zip UpdaterApp_v1.6.3_lin_x86.zip

Download Copy Link 1.02 MB 2023-08-23 23 August 2023 2023-07-25 25 July 2023
1.02 MB

37

af33ec34c8

Linux ARM

1
NameSize
UpdaterApp_v1_7_0_lin_arm.zip UpdaterApp_v1.7.0_lin_arm.zip

Download Copy Link 2.79 MB 2024-08-09 9 August 2024 2024-08-09 9 August 2024
2.79 MB
UpdaterApp_v1_6_6_lin_arm.zip UpdaterApp_v1.6.6_lin_arm.zip

Download Copy Link 2.79 MB 2023-08-23 23 August 2023 2023-08-01 1 August 2023
2.79 MB
UpdaterApp_v1_6_4_lin_arm.zip UpdaterApp_v1.6.4_lin_arm.zip

Download Copy Link 2.79 MB 2023-08-23 23 August 2023 2023-07-26 26 July 2023
2.79 MB
UpdaterApp_v1_6_3_lin_arm.zip UpdaterApp_v1.6.3_lin_arm.zip

Download Copy Link 2.79 MB 2023-08-23 23 August 2023 2023-07-25 25 July 2023
2.79 MB

41

af33ec34c8

User guide

1
NameSize
SOFT_Updater_Datasheet_01u-v1_1_26.pdf SOFT_Updater_Datasheet_01u-v1.1.26.pdf

Open Download Copy Link 837.89 KB 2023-10-02 2 October 2023 2023-10-02 2 October 2023
837.89 KB

42

af33ec34c8
