EVAL-TT-SC1

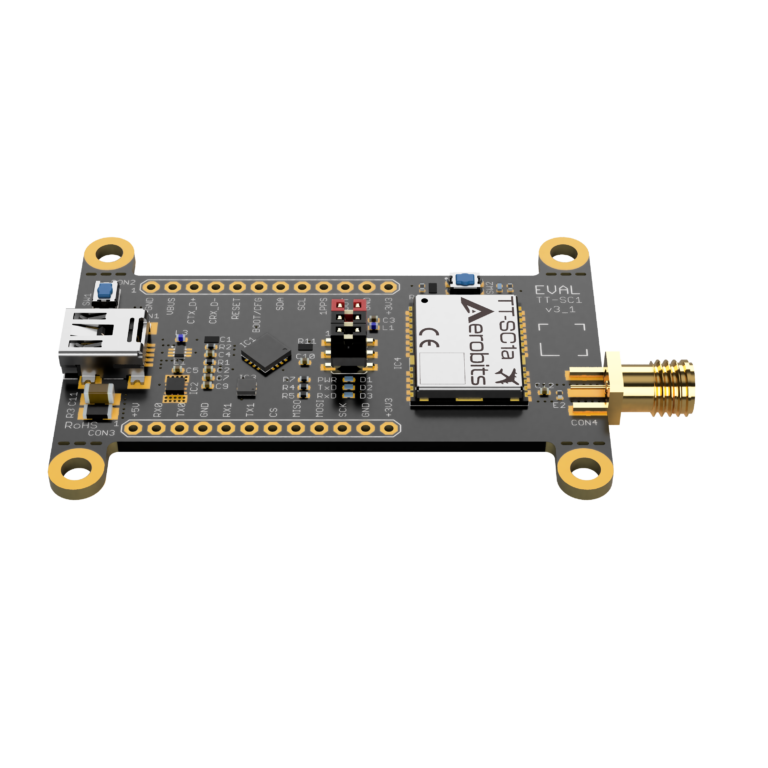

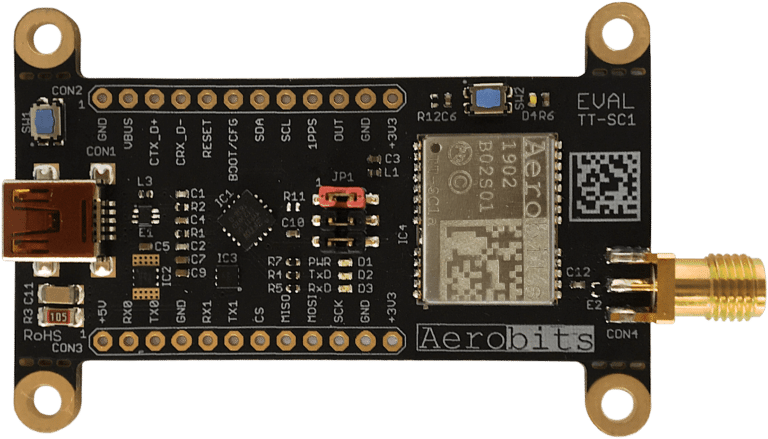

Evaluation board to the TT-SC1 module

  • The evaluation kit provides a quick introduction to the TT-SC1 module. It is a high-quality 1090MHz band receiver with an integrated ADS-B (Automatic Dependent Surveillance-Broadcast) decoder, conforming to MOPS specified in TSO-C199.

  • EVAL-TT-SC1 with the dedicated software allows the user to discover the module properties within a short time, paving the way towards quick prototyping, through tabular and 3D views.

Product status:

Featured:

Kit contents:

Basic Electrical specification:

ParameterDescriptionTyp.Unit.
Carrier frequency 1090MHz
RX sensitivityOperation at 50 Ω-80dBm
Power supply

USB or external 5V or 3.3V

5V or 3.3VDCV
Current consumption 80mA
Dimensions 68×33mm
