OEM ADS-B receiver TT-SC1-EXT

  • TT-SC1-EXT is high quality and low-price OEM ADS-B receiver series operating at 1090MHz.

  • The patented FPGA-In-The_LoopTM technology allows high-speed RF data processing with a significantly reduced number of electronic components.

  • Simultaneous miniaturization of the module and its OEM nature opens a wide range of possible applications.

Product status:

ETSI certification for TT-SC1-EXT (a,b)

  • ETSI EN 303 213-5-1 Vl.1.1 - Advanced Surface Movement Guidance and Control System (A-SMGCS); Part 5: Harmonised Standard for access to radio spectrum for Multilateration (MLAT) equipment; Sub-part 1: Receivers and Interrogators
  • PN-EN 61000-4-3:2007 + Al:2008 + A2:2011 + IS:2009 (EN 61000-4-3:2006 + Al:2008 + A2:2010 + IS:2009)- Electromagnetic compatibility (EMC) - Part 4-3
  • PN-EN 55016-2-3:2017-06 + Al:2020 (EN 55016-2-3:2017 + Al:2019) - Specification for radio disturbance and immunity measuring apparatus and methods - Part 2-3
  • PN-EN 55016-2-3:2017-06 + Al:2020 (EN 55016-2-3:2017 + Al:2019) - Specification for radio disturbance and immunity measuring apparatus and methods - Part 2-3
  • PN-EN 62321-3-1:2014-08 - RoHS

TT-SC1 series are a high performance OEM Mode -A/-C/-S and ADS-B receivers operating at 1090MHz. The patented FPGA-In-The_Loop™ technoiogy allows high-speed RF data processing with significantly reduced number of electronic components. Simultaneous miniaturization of the module and its OEM nature open a wide range of possible applications.

Want to evaluate TT-SC1-EXT?

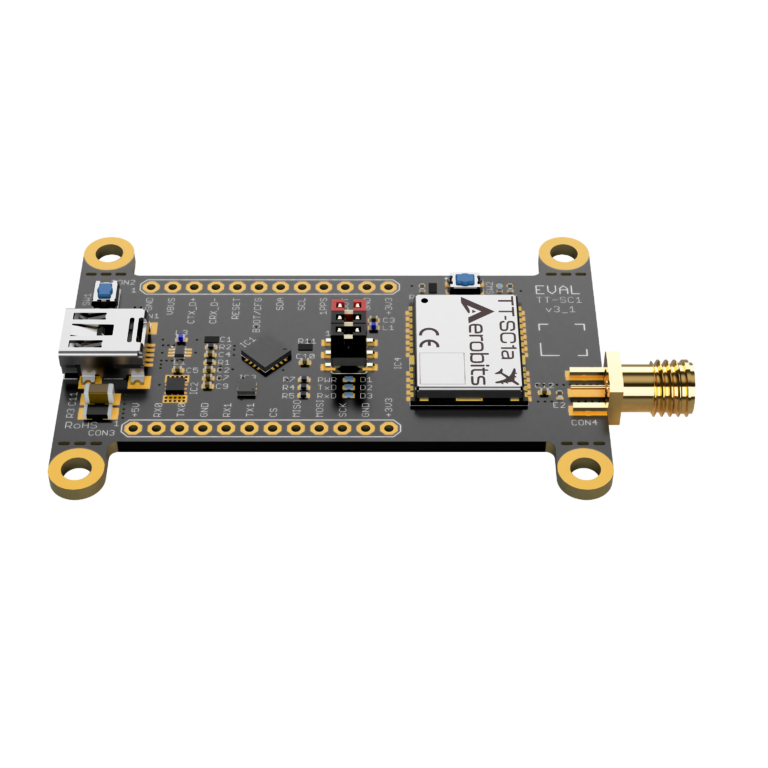

The evaluation kit provides a quick introduction to the TT-SC1-EXT module.

Check our evaluation pack

See beyond

Features:

  • Smallest ADS-B implementation on a surface of <2 cm2
  • Receiving of Mode A/C/S with RF signal strength/quality analysis
  • Time stamp (raw data only) for multilateration
  • High-­resolution ADC with real-­time signal processing; best-­in-­class aircraft tracking
  • High sensitive front-­end, jamming and ESD protection (only TT-­SC1b) with ranges over 150 km (open space, 1dBi antenna)
  • Simple module integration and configuration via UART interface and AT commands
  • RAW HEX, CSV, AERO, MAVLink, ASTERIX, GDL90
  • Scalable OEM solution with enormous customization potential (additional functions or interfaces on request)
  • Firmware update capability (uC and FPGA)
  • Low power consumption 3.3V/70mA
  • Small outline: 16.0 x 13.0 x 2.65mm, ver. (a); 20 x13.0 x 2.65mm, ver. (b), weight < 1.5g
  • Designed to meet MOPS defined in TSO-C199
  • Evaluation kit available.

Application:

  • SAA / DAA (Sense and Avoid / Detect and Avoid)
  • UAS collision avoidance systems
  • UTM / U-Space traffic awareness devices
  • Early warn devices for UAS operators
  • Collision prediction devices for gliders / paragliders
  • ADS-B In devices that meet the NextGen/SESAR philosophy

Basic Electrical specification:

ParameterDescriptionTyp.Unit.
Carrier frequency 1090MHz
RX sensitivityOperation at 50Ω-80dBm
Power supply 3.3VDCV
Current consumption 70mA
Dimensions 13×16 (a) 13×20 (b)mm
