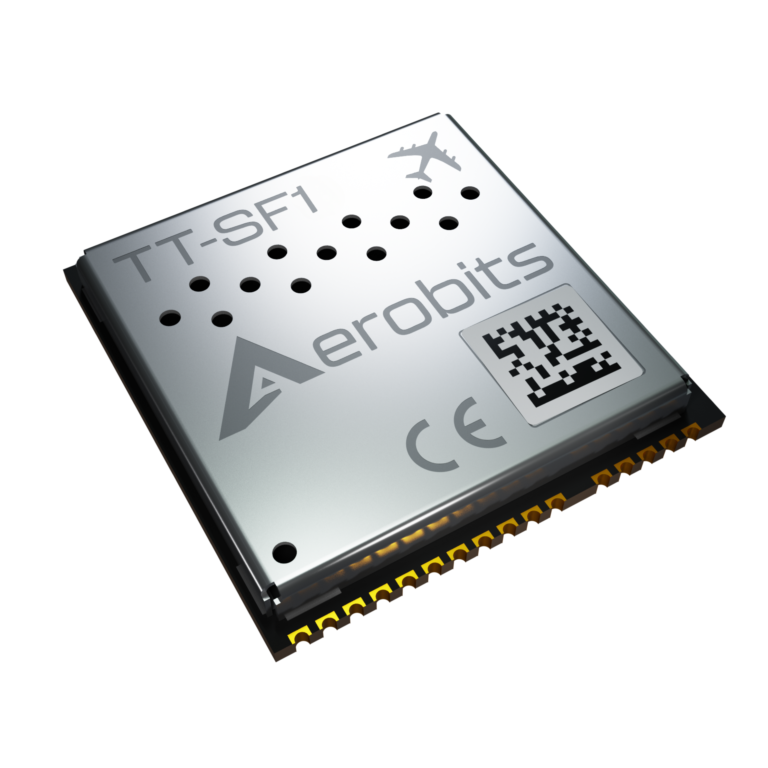

TT-SF1
TT-SF1 is a high quality, low price OEM ADS-B/GNSS receiver with built-in FLARM transceiver. It is based on the proven FPGA-In-TheLoop technology, which is a unique combination of a single-core processor and FPGA. The patented solution allows high-speed RF data processing with a significantly reduced number of electronic components. Fast UART interface, easy configuration with AT-commands allows for simple integration.

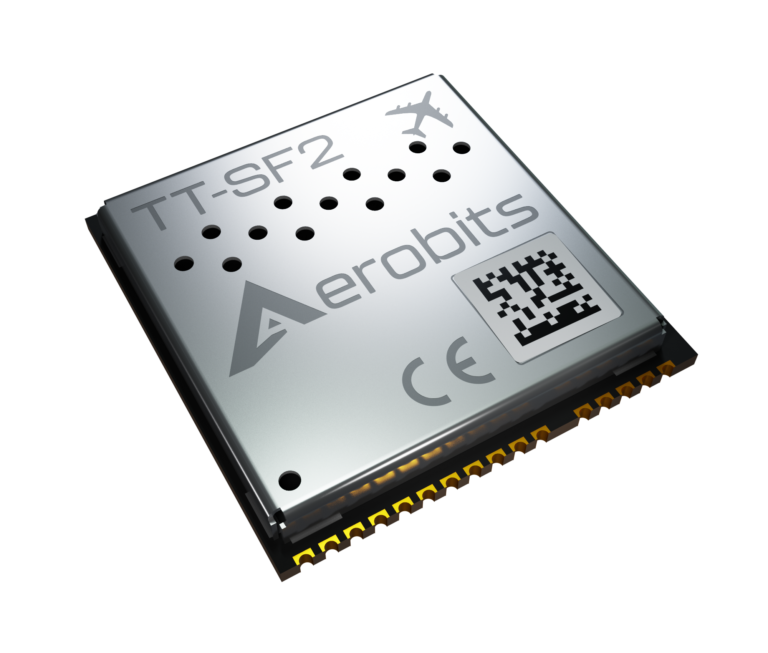

TT-SF2
TT-SF2 is high-quality OEM ADS-B/GNSS receiver operating at 1090MHz, with a FLARM transceiver for region-dependent frequencies. Based on FPGA-In-The-Loop™ technology, it combines a single-core processor with FPGA for efficient RF data processing using fewer components, enabling miniaturization and broad OEM applications. The module supports ADS-B and Mode-A/C/S reception and decoding, with RF signal power/quality analysis and timestamping for multilateration.
TT-SG1
TT-SG1 is high quality and low price OEM ADSB/GNSS receiver series operating at a frequency 1090MHz. It is based on the proven FPGAInTheLoop technology, which is a unique combination of a single-core processor and FPGA. The patented solution allows high speed RF data processing with significantly reduced number of electronic components. Simultaneous miniaturization of the module and its OEM nature open a wide range of possible applications.
TT-SU2 is a high-quality and low-price OEM ADS-B/GNSS receiver/UAT receiver series operating at 1090MHz and 978MHz. It is based on the proven FPGA-In-The-Loop™ technology, which is a unique combination of a single-core processor and FPGA. The patented solution allows high-speed RF data processing with significantly reduced number of electronic components. Simultaneous miniaturization of the module and its OEM nature opens a wide range of possible applications.

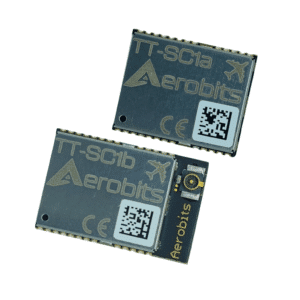

TT-SC1
TT-SC1 series is the smallest implementations of ADS-B in the OEM concept. Version “A” module size is 16.0×13.0x2.5 mm, weight 1g and has a power consumption of 70mA at 3.3V. It gives a wide range of applications, especially directly in UAS control systems. In TT-SC1a RF terminal is internally matched to 50ohms, so it enables to use of any antenna connector on target board. TT-SC1b is slightly larger than version „A” and has been equipped with an U.FL antenna connector and ESD protection on the RF line.
TT-SC1-EXT
TT-SC1-EXT series are the smallest implementations of ADS-B and mode A/C/S in the OEM concept. Version “A” module size is 16.0×13.0x2.5mm, weight 1g and has power consumption 70mA at 3.3V. It gives a wide range of applications, especially directly in UAS control systems. In TT-SC1a-EXT RF terminal is internally matched to 50ohms, so it enables to use any antenna connector on target board. TT-SC1b-EXT is slightly larger than version „A” and has been equipped with an U.FL antenna connector and ESD protection on the RF line.

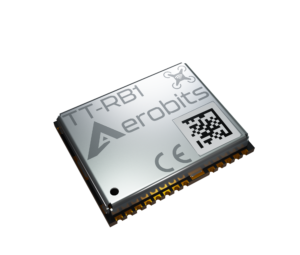

TT-RB1 is designed to meet the requirements of remote drone identification and localization in ASTM/ASD-STAN standards. Using the BLE broadcast technology, the device provides surveillance and drone operator identification capability based on any modern mobile device such as a smartphone or tablet.
TT-RG1
TT-RG1 is designed to meet requirements of remote drone identification and localization in ASTM/ASD-STAN standard. Using the BLE broadcast and Beacon frames technology the device provides surveillance and drone operator identification capability based on any modern mobile devices such as smartphone or tablet.
It is equipped with a high quality multi-GNSS receiver and a barometric altitude sensor.

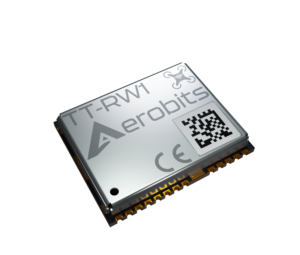

TT-RW1 is designed to meet requirements of remote drone identification and localization in ASTM/ASD-STAN standard. Using the BLE broadcast and WiFi Nan, Beacon frames technology the device provides surveillance and drone operator identification capability based on any modern mobile devices such as smartphone or tablet. It is equipped with a high quality multi-GNSS receiver and a barometric altitude sensor.
Compare OEM products
Product Info |
TT-SC1 |
TT-SC1-EXT |
TT-SF1 |
TT-SG1 |
TT-SU2 |
TT-RB1 |
TT-RG1 |
TT-RW1 |
---|---|---|---|---|---|---|---|---|
Price | 119.00 € | 229.00 € | 349.00 € | 279.00 € | 349.00 € | 24.95 € | 64.95 € | 64.95 € |
Weight | 0.5 g | 1.5 g | 2 g | 2 g | 2 g | 2 g | 2 g | 2 g |
Dimensions | 16 × 13 × 2.65 mm | 16 × 13 × 2.4 mm | 18.5 × 19 × 2.4 mm | 18 × 19 × 2.65 mm | 18.5 × 19 × 2.4 mm | 16 × 13 × 2.40 mm | 16 × 13 × 2.4 mm | 16 × 13 × 2.4 mm |
ADS-B in | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ | - | ✗ |
FLARM in/out | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ |
Mode A/C/S | ✗ | ✓ | ✓ | ✓ | ✓ | ✗ | ✗ | ✗ |
Build-in GNSS | ✗ | ✗ | ✓ | ✓ | ✓ | ✗ | ✓ | ✓ |
Timestamp | ✗ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
UAT | ✗ | ✗ | ✗ | - | ✓ | ✗ | ✗ | ✗ |
Bluetooth | - | - | - | - | - | - | ✓ | ✓ |
Carrier Frequency [MHz] | 1090[MHz] (ADS-B) | 1090[MHz] | 1090[MHz] (ADS-B) | 1090[MHz] (ADS-B) / 3 GNSS concurrent | 1090[MHz] (ADS-B) / 978 (UAT) / 4 GNSS concurrent | min.2402MHz, max.2480MHz (Bluetooth) | 1090[MHz] (Bluetooth) | min. 2400, max.2485MHz (Bluetooth/Wi-Fi) |
Wi-Fi | - | - | - | - | - | - | - | ✓ |
Current consumption (mA) | 70 | 70 | 130 | 130 | 130 | 70 | 70 | 70 |
GNSS | ✗ | ✗ | ✓ | 72-channel engine; GPS/QZSS L1 C/A; GLONASS L10F; BeiDou B1; Galileo E1B/C1SBAS L1 C/A; C/A WAAS; EGNOS, MSAS; GAGAN | 72-channel engine; GPS/QZSS L1 C/A; GLONASS L10F; BeiDou B1; Galileo E1B/C1SBAS L1 C/A; C/A WAAS; EGNOS, MSAS; GAGAN | ✗ | ✓ | ✓ |
Power supply (DC) | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
RX sensitivity (dBm) | -84dBm (ADS-B) | -84dBm (ADS-B) | approx. -80dBm (ADS-B), -95dBm (FLARM),-167dBm (GNSS) | -88dBm (ADS-B) / -167(GNSS) | -85dBm (ADS-B)/ -95(AUT)/ -167(GNSS) | approx. -85dBm | -167 (GNSS); -85dBm (Bluetooth) | -167 (GNSS); -85dBm (Bluetooth) |
Versions | Version a, Version b | Version a, Version b | - | - | - | - | - | - |
